Heat Transfer
Heat Transfer
Multicolor Image Transfer for Complex Graphics
Heat transfer is a decorating process that uses heat, pressure, and precision indexing to transfer a pre-printed image from a carrier film onto a part surface. This method allows for multicolor graphics to be applied in a single operation.
The process is ideal for applications requiring detailed images, logos, or branding elements.
The process involves:
- A pre-printed image is aligned with the part
- A heated die applies pressure to transfer the image
- The image separates from the carrier film and bonds to the surface
- The carrier advances to the next indexed position
Accurate indexing is critical to ensure proper placement of the image.
Key
Benefits
Multicolor graphics applied in a single cycle
High level of detail and image quality
Consistent placement with proper registration
Suitable for complex or decorative applications
Reduced need for secondary processes
Best for serial numbering applications
Effective on both flat and contoured surfaces.
Material
Compatibility
Plastics
Rubber
Metal
Glass
Textiles
Process Considerations
Heat transfer is best suited for applications where:
- Multicolor graphics are required
- Precise image placement is critical
- The part may have contours or complex geometry
- Visual quality is a primary concern
This process requires more precise setup and indexing compared to hot stamping.
Typical Applications
- Branded consumer products
- Automotive interior components
- Appliance panels
- Cosmetic and packaging applications
- Textile and apparel decoration

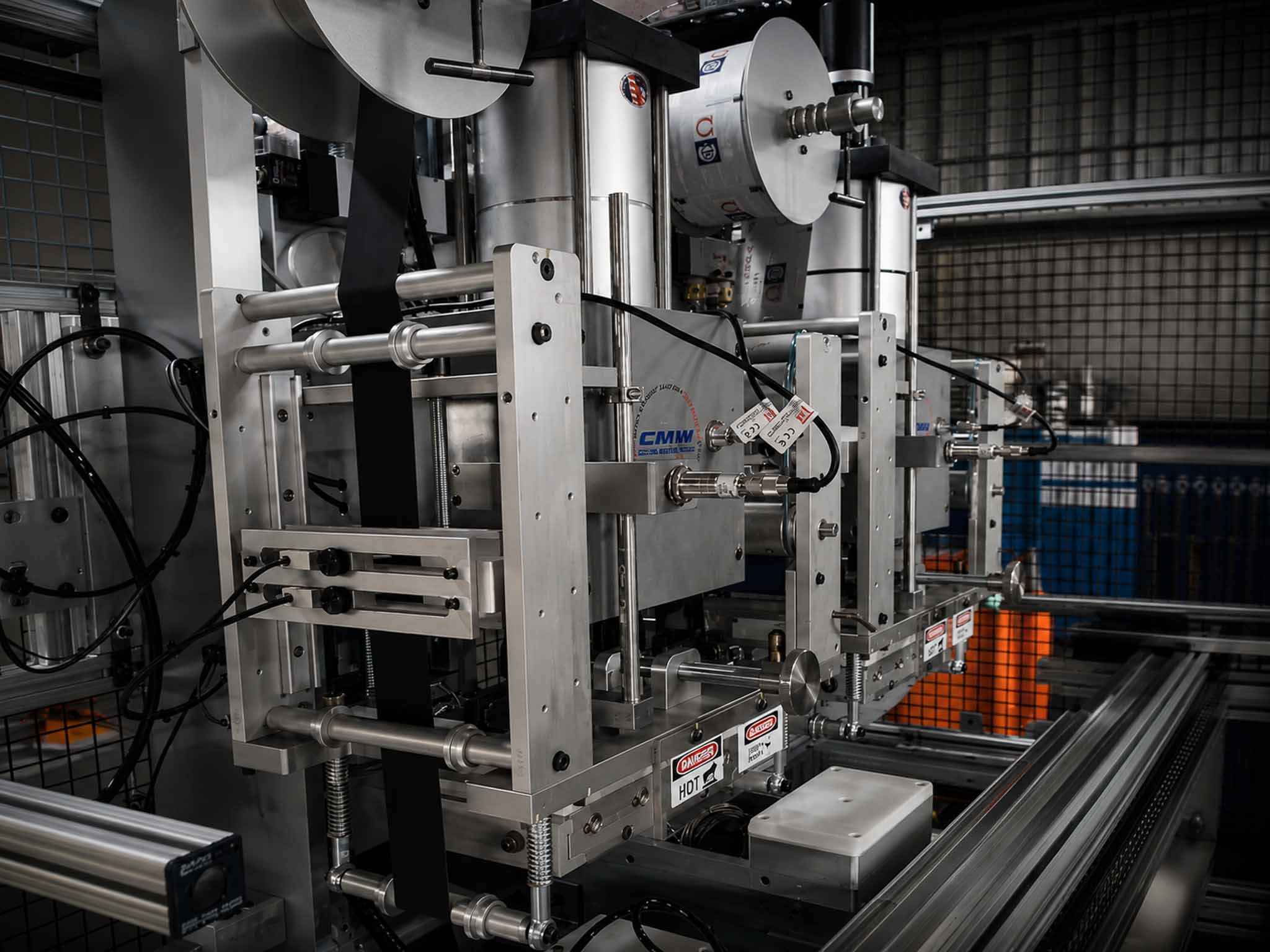

Equipment Compatibility
Heat transfer can be performed on:
- Pneumatic presses (P Series)
- Hydra-pneumatic presses (HP Series)
- Hydraulic presses (H Series)
- Multi-head systems
Important:
Machines configured for heat transfer can also perform hot stamping.
Hot stamping-only machines cannot perform heat transfer.
