P Series (Pneumatic)

P Series

Pneumatic Hot Stamping & Heat Transfer Presses

The Hastings P Series consists of pneumatic presses designed for hot stamping and heat transfer applications requiring reliable performance, flexible configuration, and efficient operation.

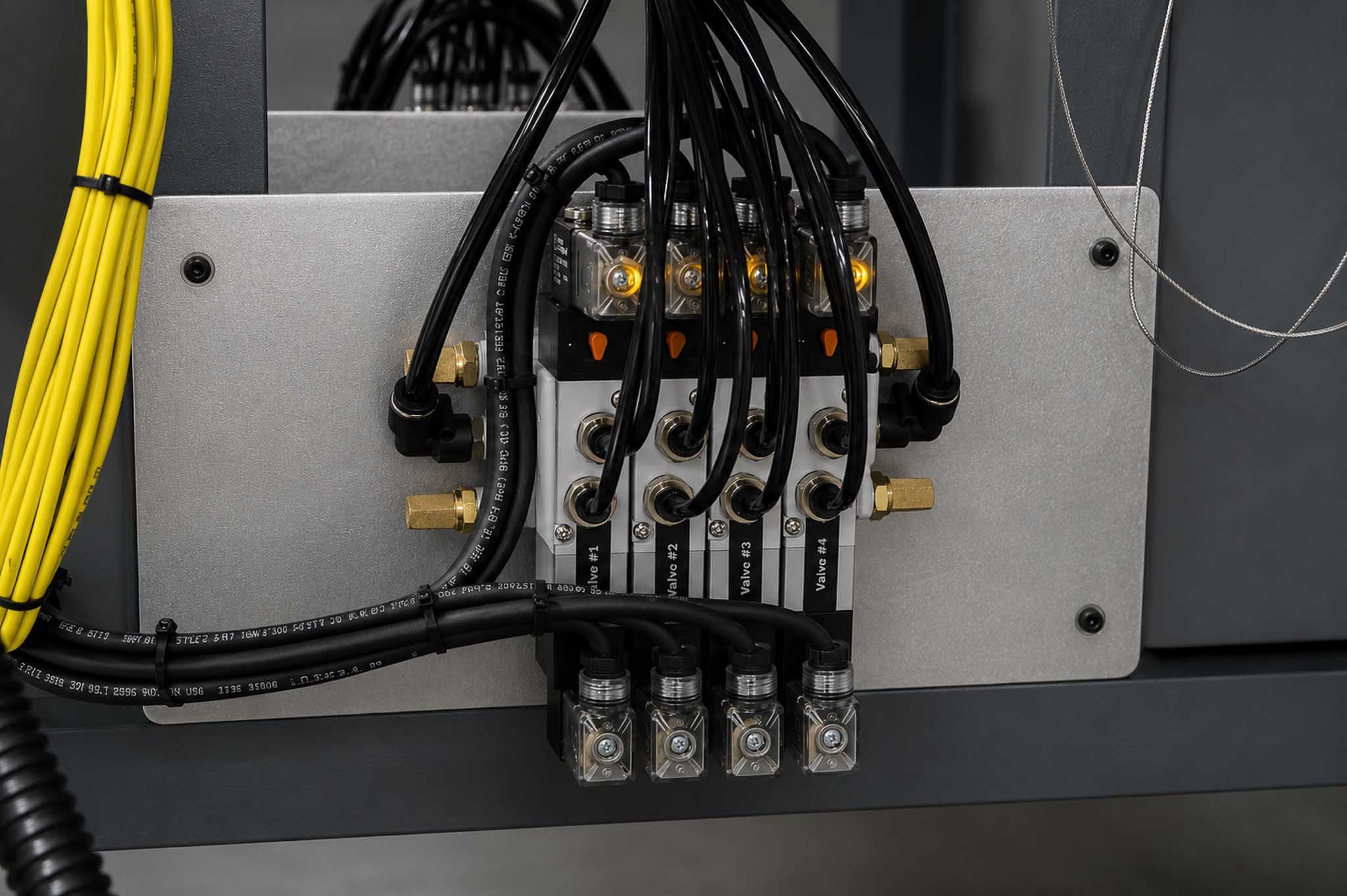

These systems utilize multi-stage pneumatic cylinders to generate stamping force using standard shop air, eliminating the need for complex mechanical linkages while maintaining consistent pressure and repeatable results.

P Series presses are well suited for a wide range of industrial marking and decorating applications and can be configured as standalone systems or integrated into automated production environments.

Available in Hot Stamping and Heat Transfer Configurations

All P Series presses are available in both:

  • Hot Stamping (RL) – Foil-based marking for durable, single-color or metallic finishes
  • Heat Transfer (HT) – Multicolor image transfer using precision indexing and registration

Important:
Heat transfer machines can also perform hot stamping.
Hot stamping-only machines cannot be used for heat transfer.

This flexibility allows each P Series platform to be configured based on application requirements without changing the core machine.

Key Features Across the P Series

Pneumatic multi-stage cylinders for efficient force generation

Sturdy steel frame construction

Adjustable daylight and large work surfaces

Precision linear guidance with maintenance-free bearings

Four-corner die leveling adjustment

Microprocessor-controlled press functions

Touchscreen HMI with programmable recipes

Solid-state digital heat control

Operator safety systems with anti-tie-down and infrared sensing

Standard off-the-shelf components for serviceability

Tooling and Automation Integration

Hastings designs and manufactures complete tooling systems and can integrate P Series presses into automated production environments.

Available integration options include:

  • Custom tooling and dies
  • Nesting fixtures and alignment systems
  • Rotary index tables
  • Slide tables
  • Pick-and-place systems
  • Vision inspection systems
  • Auto-eject mechanisms

Designed for Production Flexibility

P Series presses are designed to support a variety of production environments:

  • Standalone workstations
  • Multi-station production setups
  • Automated cells with robotic loading and unloading
  • Conveyor-based manufacturing lines

Each system can be configured with tooling, fixturing, and automation options to match specific application requirements.

P Series Models

Select a model below to view detailed specifications and configuration options.

P1/2

1/2 Ton Pneumatic Press
Compact platform for small-format applications requiring precise control and flexible setup.
View Model P1/2

P1

1 Ton Pneumatic Press
Versatile platform with upgradeable tonnage and expanded working capacity.
View Model P1

P2

2 Ton Pneumatic Press
Mid-range production system with increased force and larger imprint capability.
View Model P2

P3

3 Ton Pneumatic Press
Higher tonnage pneumatic system designed for larger imprint areas and increased production demands.
View Model P3

P4

4 Ton Pneumatic Press
Maximum capacity pneumatic press with expanded head sizes and increased force capability.
View Model P4

Selecting the Right
P Series Press

Choosing the appropriate model depends on:

  • Required stamping force (tonnage)
  • Imprint size and die surface area
  • Material type and thickness
  • Production volume
  • Automation requirements

Hastings can assist in evaluating your application and recommending the appropriate configuration.
