Built for Accuracy. Designed for Production.
Model P1/2
Model P1/2
Compact Pneumatic Stamping Platform
(1/2 Ton)
The Model P1/2 is a compact pneumatic press designed for precision hot stamping and heat transfer applications. Built for repeatable performance in small-format production environments, the P1/2 platform supports both Hot Stamping (RL) and Heat Transfer (HT) configurations.
Key Features
Sturdy blanchard ground steel frame
Adjustable daylight with large aluminum work table
Hardened linear shafts with maintenance-free composite bearings
Dovetail die mounting plate
Four-corner die leveling adjustment
Calibrated anti-pinch stroke adjustment
Microprocessor-controlled press functions
Touchscreen interface with:
- Cycle counter
- Setup mode (jog function)
- Head-up delay
Ten programmable recipes for pressure, temperature, and timing
Solid-state dual digital heat control
Two-hand anti-tie-down safety system with infrared sensing beams
Air filter and pressure regulator
Standard Specifications
Head Size
5 x 5 in
Optional Head Size
6 x 8 in
Maximum Stamping Pressure
1/2 Ton
Head Stroke
0–3 in (additional stroke upon request or application)
Throat Depth
6 in
Adjustable Daylight
0–12 in
Electrical Requirements
110
Support Guide Rods with Die Set Bearings
2 (optional 4)
Air Requirements
10-100 psi
Approximate Dimensions
Height
45 in
Width
45 in
Depth
18 in
Weight
235 lbs
Available Configurations and
Process Options
The P1/2 platform can be configured for either heat transfer or hot stamping applications depending on production requirements.
Hot Stamping (RL)
- Foil-based decoration process
- Timer-controlled foil advance
- Suitable for single-color, metallic, or durable markings
- Simplified indexing system
Note: Hot stamping-only machines cannot be used for heat transfer.
Heat Transfer (HT)
- Multicolor image transfer capability
- Photoelectric eye registration for accurate placement
- Precision film indexing system
- Suitable for detailed graphics and multi-color applications
Note: Heat transfer machines can also perform hot stamping.
Built for Flexible Production
The compact frame design allows the P1/2 to be used as:
- Bench-top press
- Standalone workstation
- Integrated into automated systems
- Robotic or conveyor-based production lines
The adjustable daylight and work surface simplify setup and tooling changes across different applications.

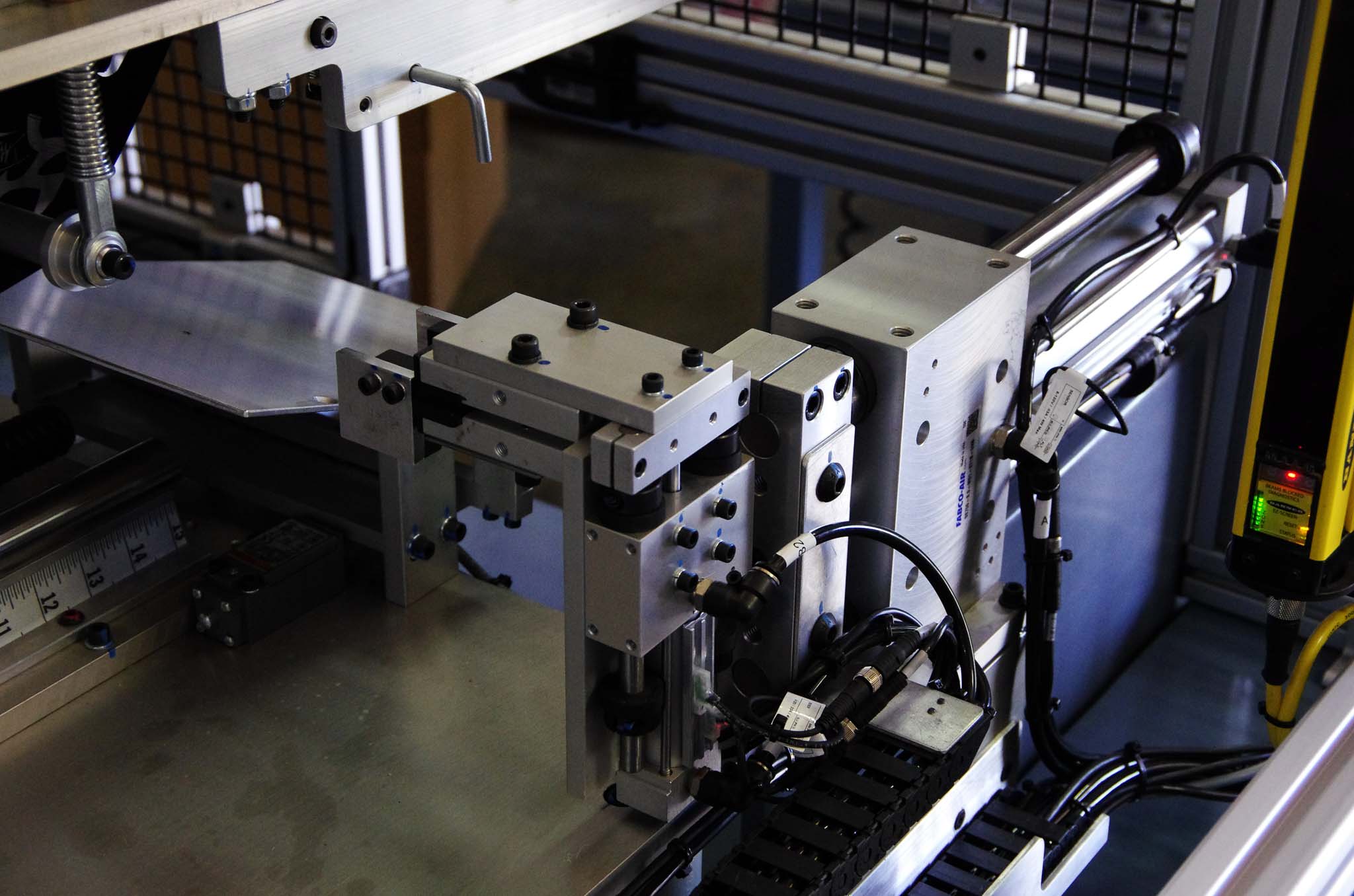

Tooling and Automation Integration
The P1/2 supports integration with:
- Custom tooling and dies
- Nesting fixtures and alignment systems
- Rotary index tables and slide tables
- Pick-and-place systems
- Vision inspection and auto-eject systems
Hastings can design complete automation systems or integrate this press into existing production lines.
