Built for Accuracy. Designed for Production.
HP Series (Hydra-Pneumatic)
HP Series

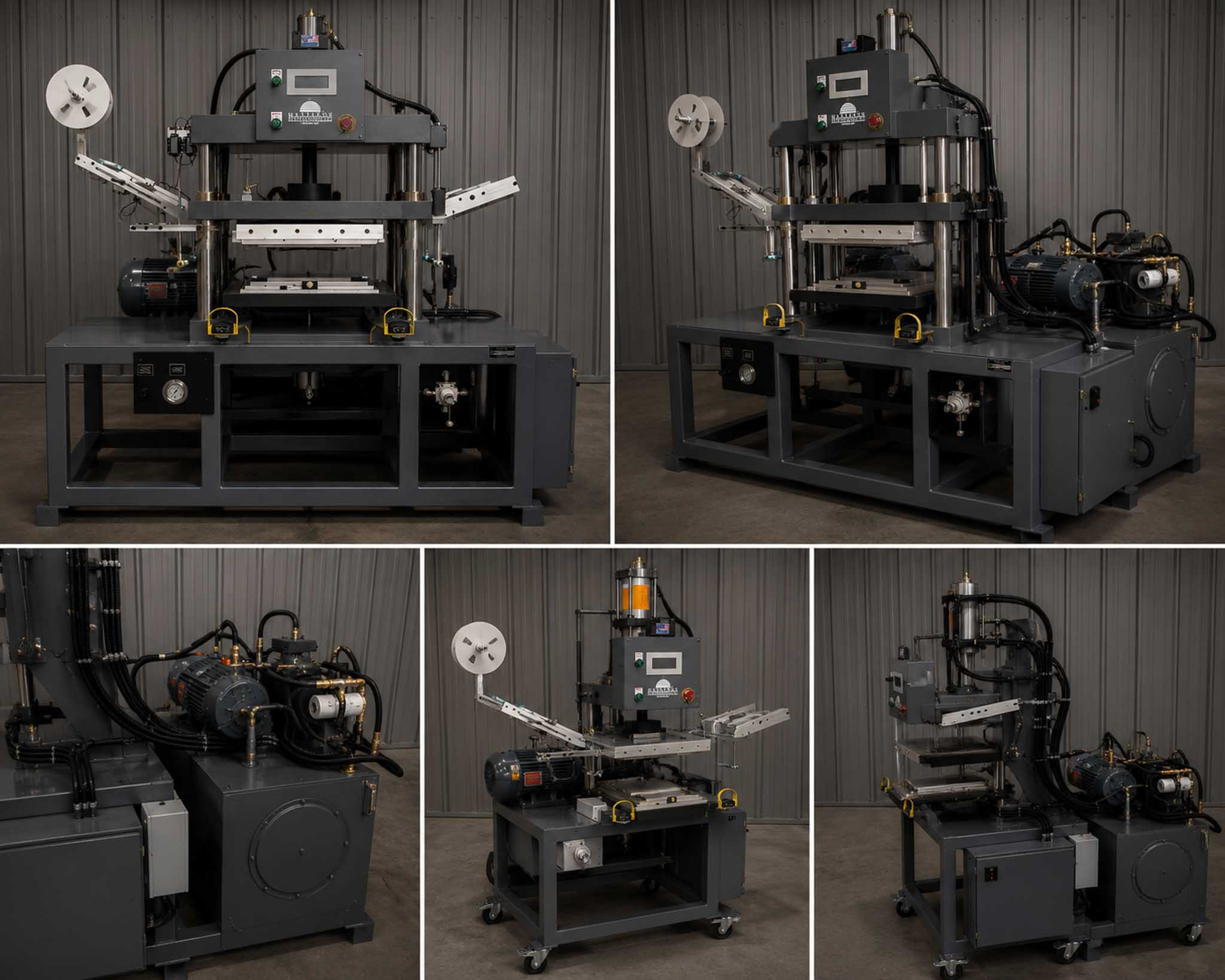

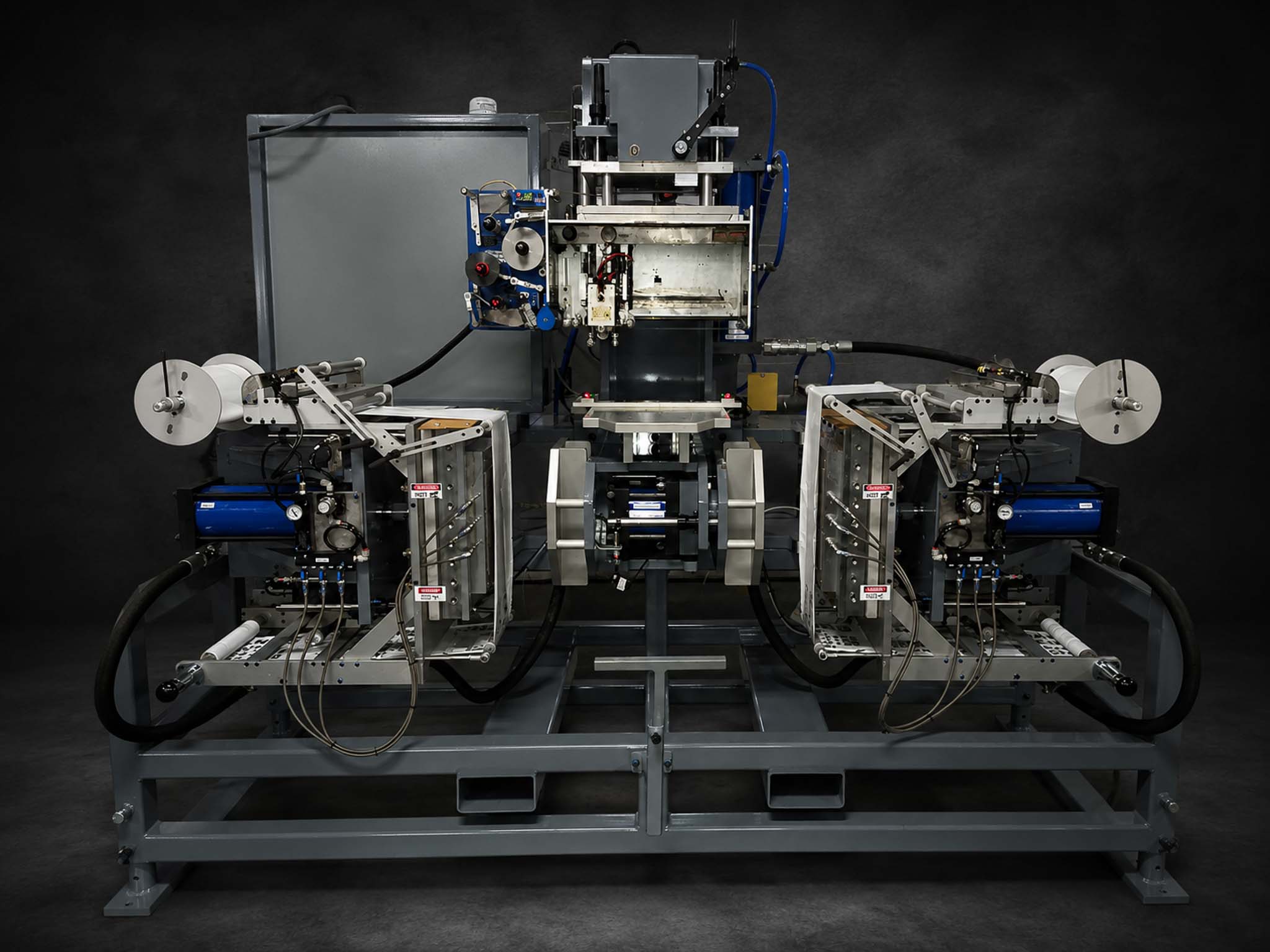

Hydra-Pneumatic Hot Stamping & Heat Transfer Presses
The Hastings HP Series consists of hydra-pneumatic presses designed for hot stamping and heat transfer applications requiring increased force with controlled pressure delivery. These systems combine pneumatic operation with hydraulic force amplification to deliver higher tonnage while maintaining efficient cycle performance.
The HP Series is ideal for applications where pneumatic systems are not sufficient, but full hydraulic systems are not required.
Available in Hot Stamping and Heat Transfer Configurations
All HP Series presses are available in both:
- Hot Stamping (RL) – Foil-based marking for durable, single-color or metallic finishes
- Heat Transfer (HT) – Multicolor image transfer using precision indexing and registration
Important:
Heat transfer machines can also perform hot stamping.
Hot stamping-only machines cannot be used for heat transfer.
This allows each HP Series platform to be configured based on application requirements without changing the core machine.
Key Features Across the HP Series
Hydra-pneumatic systems for increased force and controlled pressure application
Higher tonnage capability than pneumatic presses
More efficient operation compared to full hydraulic systems
Heavy-duty steel frame construction
Adjustable daylight and large work surfaces
Precision linear guidance with maintenance-free bearings
Four-corner die leveling adjustment
Microprocessor-controlled press functions
Touchscreen HMI with programmable recipes
Solid-state digital heat control
Operator safety systems with anti-tie-down and infrared sensing
Tooling and Automation Integration
Hastings designs and manufactures complete tooling systems and can integrate HP Series presses into automated production environments.
Available integration options include:
- Custom tooling and dies
- Nesting fixtures and alignment systems
- Rotary index tables
- Slide tables
- Pick-and-place systems
- Vision inspection systems
- Auto-eject mechanisms
Designed for Production Flexibility
HP Series presses are suitable for a wide range of production environments:
- Standalone workstations
- Multi-station production setups
- Automated cells with robotic loading and unloading
- Conveyor-based manufacturing lines
These systems can be configured with tooling, fixturing, and automation options to match specific application requirements.
Bridging Pneumatic and Hydraulic Performance
The HP Series is designed to fill the gap between pneumatic and full hydraulic systems.
Compared to pneumatic presses:
- Increased stamping force
- Better performance on larger imprint areas
- Improved consistency in pressure delivery
Compared to hydraulic presses:
- Faster cycle times
- Simpler system design
- Lower operational complexity
This makes the HP Series a practical solution for many medium-to-high force applications.
HP Series Models
Select a model below to view detailed specifications and configuration options.
HP8
8 Ton Hydra-Pneumatic PressMid-range system designed for larger imprint areas and improved pressure consistency.
View Model HP8
HP10
10 Ton Hydra-Pneumatic PressHigh-force system for demanding production environments and larger-format applications.
View Model HP10
HP15
15 Ton Hydra-Pneumatic PressMaximum capacity hydra-pneumatic press for large-format and high-pressure applications.
View Model HP15
Selecting the Right
Hydra-Pneumatic Press
Choosing the appropriate HP Series model depends on:
- Required stamping force (tonnage)
- Imprint size and die surface area
- Material type and thickness
- Production volume
- Automation and integration requirements
Hastings can assist in evaluating your application and recommending the appropriate system configuration.
