Model P2
Pneumatic Stamping Platform
(2 Ton)
The Model P2 is a pneumatic press designed for hot stamping and heat transfer applications requiring increased force and expanded imprint capacity. Built for reliable performance in production environments, the P2 platform supports both Hot Stamping (RL) and Heat Transfer (HT) configurations.
Its upgradeable tonnage capability and rigid frame construction make it well suited for medium-duty industrial marking and decorating applications.
Key Features
Sturdy blanchard ground steel frame with large aluminum work table
Adjustable daylight for flexible tooling setup
Hardened linear shafts with maintenance-free composite die set bearings
Dovetail die mounting plate
Four-corner die leveling adjustment
Calibrated anti-pinch stroke adjustment
Microprocessor-controlled press functions
Touchscreen interface with:
- Cycle counter
- Setup mode (jog function)
- Head-up delay
Ten programmable recipes for pressure, temperature, and timing
Solid-state dual digital heat control
Two-hand anti-tie-down safety system with infrared sensing beams
Air filter and pressure regulator
Rugged steel tubing support frame
High-flow pneumatic system for improved cycle efficiency
Multi-stage pneumatic cylinder for increased force without toggle mechanisms
Standard Specifications
Head Size
6 x 8 in
Optional Head Size
8 x 8 in
Maximum Stamping Pressure
2 Ton (upgradeable 3 Ton)
Head Stroke
0–3 in (additional stroke upon request or application)
Throat Depth
7 1/2 in
Adjustable Daylight
0–16 in
Electrical Requirements
120, 18 Amps (optional 240, 12 amps available)
Support Guide Rods with Die Set Bearings
2
Air Requirements
10-100 psi
Approximate Dimensions
Height
83-1/2 in
Width
45 in
Depth
33 in
Weight
544 lbs
Available Configurations and
Process Options
The P2 platform can be configured for either heat transfer or hot stamping applications depending on production requirements.
Hot Stamping (RL)
- Foil-based decoration process
- Motor-driven, timer-controlled foil advance
- Suitable for single-color, metallic, or durable markings
- Simplified indexing system for consistent foil application
Note: Hot stamping-only machines cannot be used for heat transfer.
Heat Transfer (HT)
- Multicolor image transfer capability
- High-accuracy transfer indexing system
- Photoelectric eye registration or perforation detection
- Two-speed indexing control for improved accuracy
- Fine adjustment for transfer alignment
- Suitable for detailed graphics and multi-color applications
Note: Heat transfer machines can also perform hot stamping.
Built for Flexible Production
The P2 is designed for a wide range of production environments and can be configured as:
- Standalone workstation
- Integrated production press
- Part of an automated system
- Robotic or conveyor-based application
The adjustable daylight and large work surface simplify tooling setup and changeovers.
The frame design allows the press to be upgraded from a 2-ton system to a 3-ton system by replacing the pneumatic cylinder.
Tooling and Automation Integration
The P2 supports full integration with:

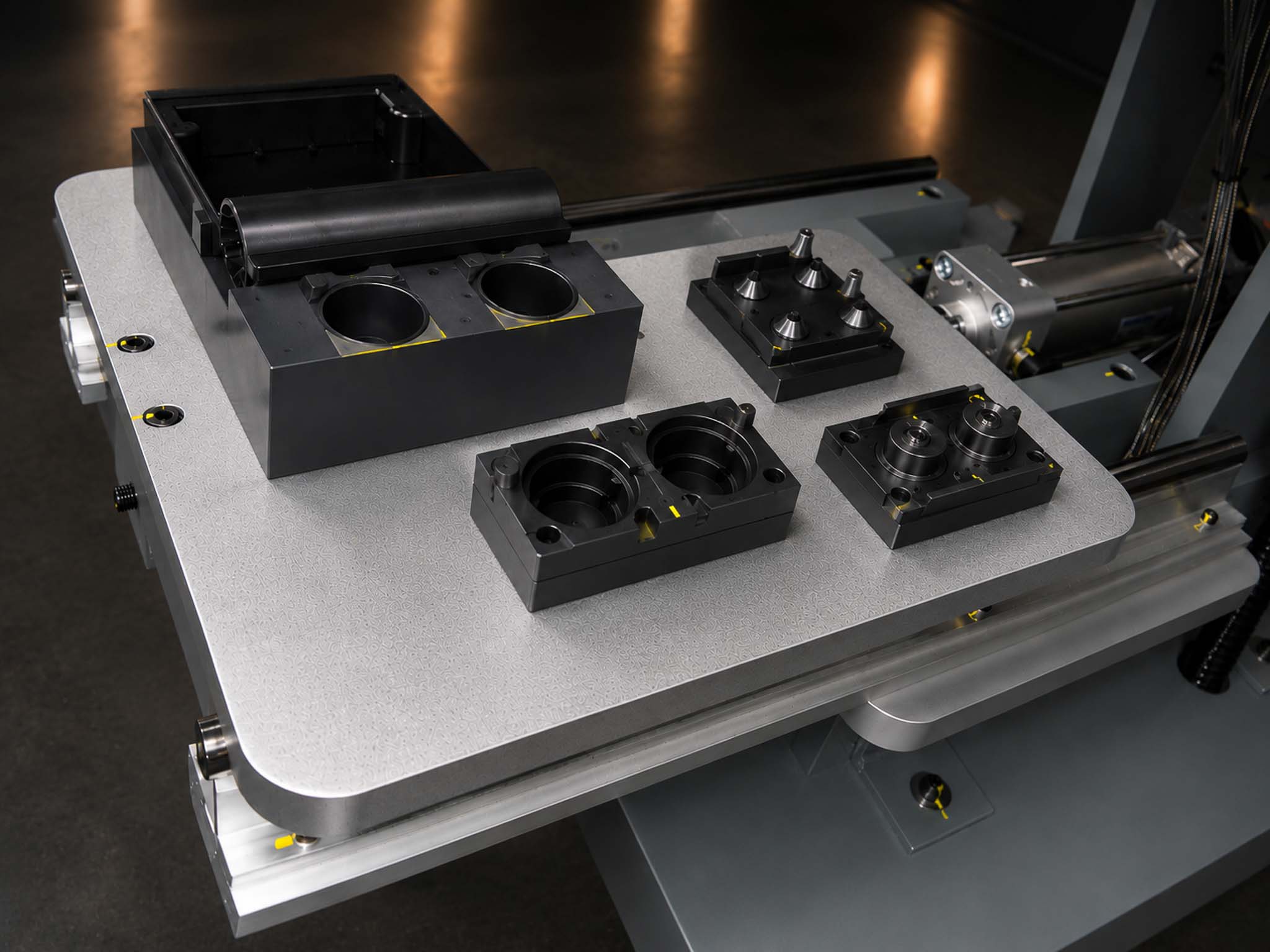

- Custom tooling and dies
- Nesting fixtures and alignment systems
- Rotary index tables and slide tables
- Pick-and-place systems
- Vision inspection and auto-eject systems
Hastings can design complete automation systems or integrate the P2 into existing production lines.
