Model H60
Model H60
Hydraulic Stamping Platform
(60 Ton)
The Model H60 is a hydraulic press designed for hot stamping and heat transfer applications requiring very high tonnage and precise pressure control. Utilizing a full hydraulic system, the H60 delivers consistent force throughout the entire stroke, making it well suited for the most demanding industrial applications.
As a higher-capacity system within the hydraulic series, the H60 is built for large-format stamping, rigid materials, and applications where uniform pressure across the entire die surface is critical.
Key Features
Heavy-duty steel frame with four-post design for maximum rigidity
Large aluminum work table for secure tooling setup

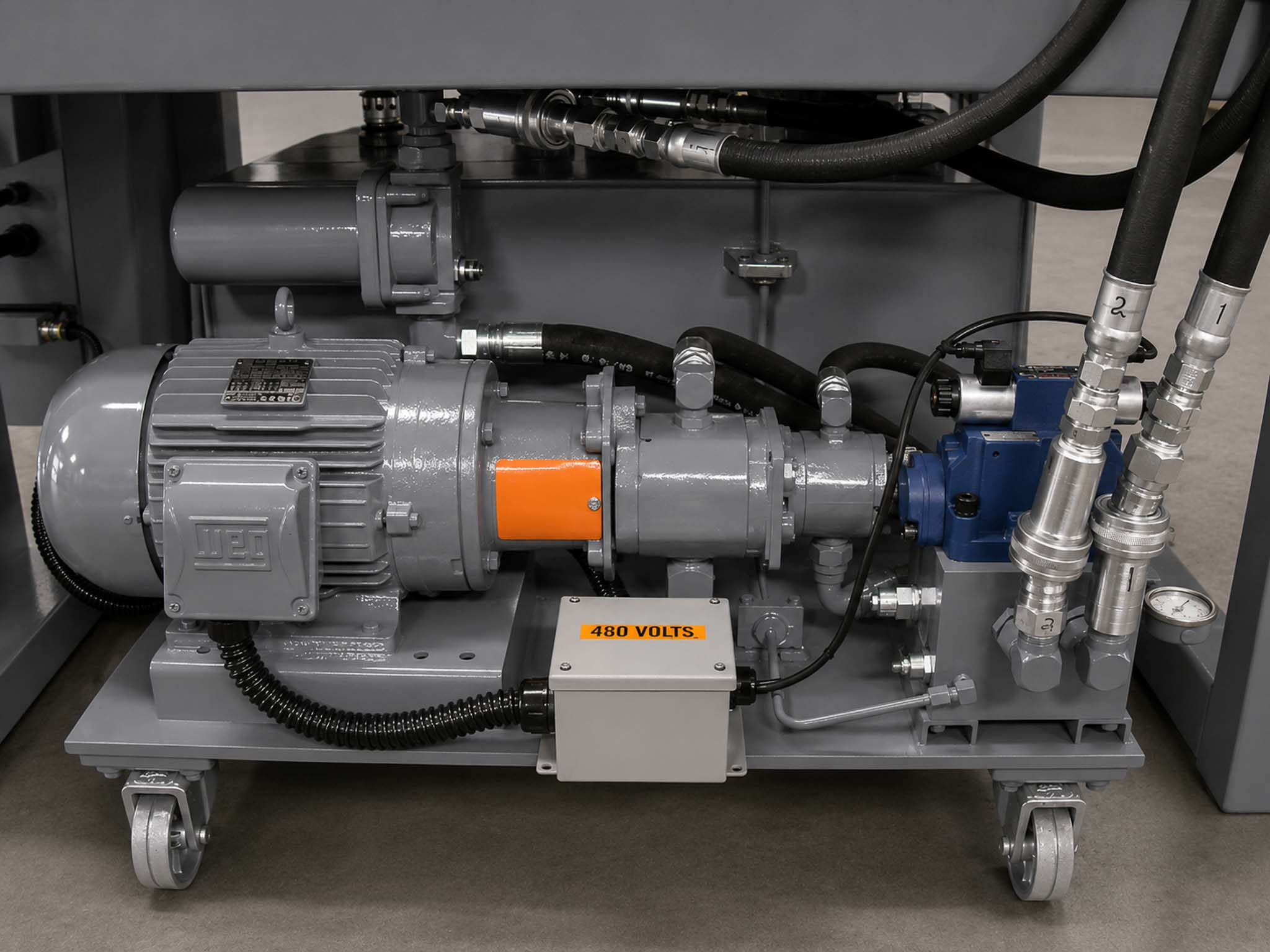

Hydraulic system for full-force delivery across the entire stroke
Hardened linear shafts with maintenance-free composite die set bearings
Hardened linear shafts with maintenance-free composite die set bearings
Dovetail die mounting plate
Four-corner die leveling adjustment
Calibrated anti-pinch stroke adjustment
Microprocessor-controlled press functions
Touchscreen interface with:
- Cycle counter
- Setup mode (jog function)
- Head-up delay
Ten programmable recipes for pressure, temperature, and timing
Solid-state dual digital heat control
Two-hand anti-tie-down safety system with infrared sensing beams
High-flow hydraulic system for efficient cycle performance
Rugged structural design for high-tonnage applications
Standard Specifications
Head Size
36 x 36 in
Optional Head Size
48 x 48 in
Maximum Stamping Pressure
60 Ton
Head Stroke
0–4 in (additional stroke upon request or application)
Throat Depth
Clear (4-post design)
Adjustable Daylight
N/A
Electrical Requirements
480, 3 Phase
Support Guide Rods with Die Set Bearings
4
Frame Design
4 (C-frame) / 4-post configuration
Available Configurations and
Process Options
The H60 platform can be configured for either heat transfer or hot stamping applications depending on production requirements.
Hot Stamping (RL)
- Foil-based decoration process

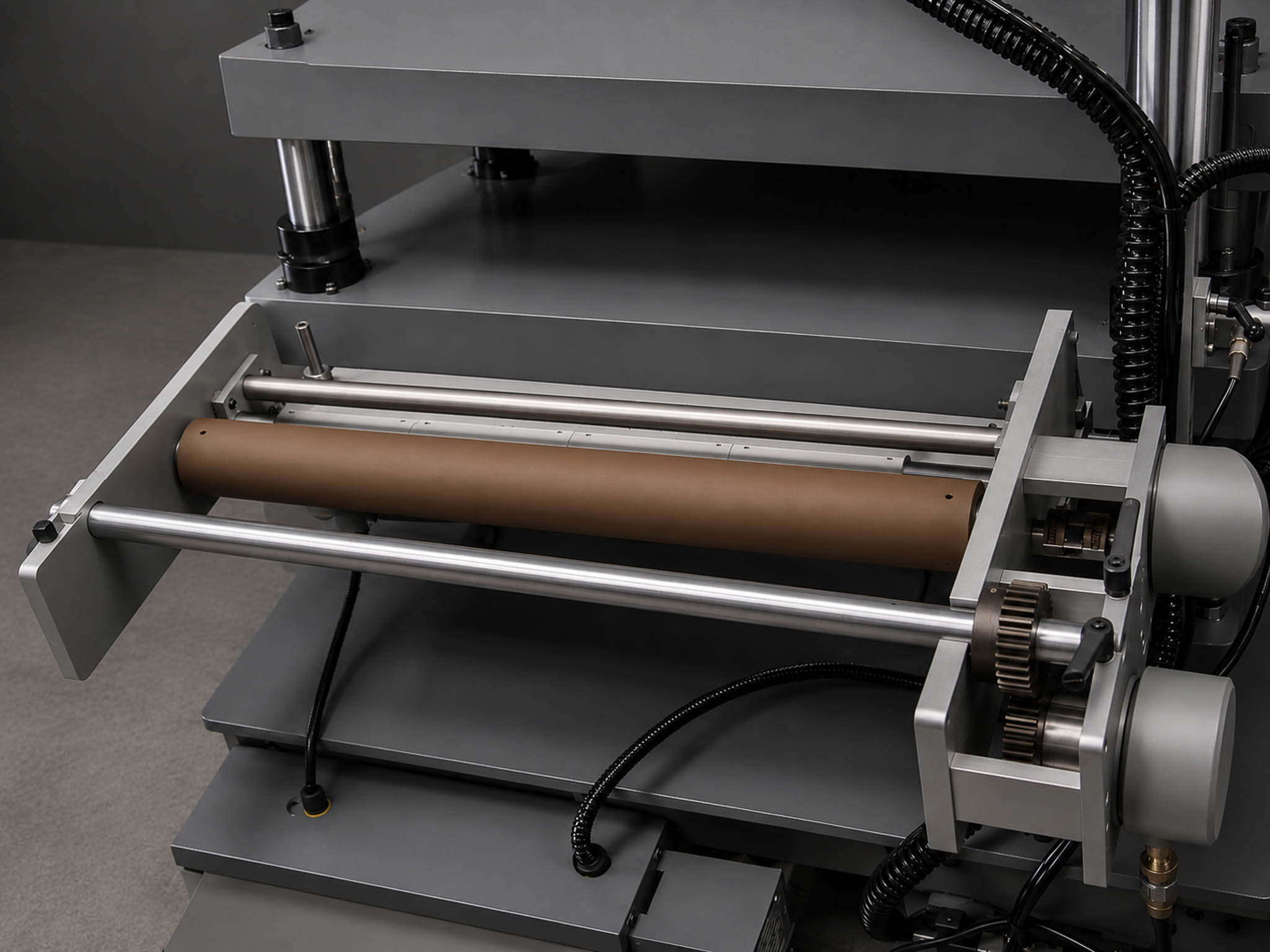

- Motor-driven, timer-controlled foil advance
- Suitable for single-color, metallic, or durable markings
- Simplified indexing system for consistent foil application
Note: Hot stamping-only machines cannot be used for heat transfer.
Heat Transfer (HT)
- Multicolor image transfer capability
- High-accuracy transfer indexing system
- Photoelectric eye registration for precise placement
- Two-speed indexing control for improved accuracy
- Fine adjustment for transfer alignment
- Suitable for detailed graphics and multi-color applications
Note: Heat transfer machines can also perform hot stamping.
Built for Heavy-Duty and Large-Scale Production
The H60 is designed for applications that require maximum force and consistent pressure across very large imprint areas.
Typical use cases include:
- Large-format industrial decoration and marking
- Thick, rigid, or structural materials
- Applications requiring uniform pressure across large dies
- High-force production environments
The full hydraulic system ensures consistent pressure throughout the stroke, providing uniform transfer results across the entire stamping surface.
Tooling and Automation Integration
The H60 supports integration with:
- Custom tooling and dies
- Large-format nesting fixtures
- Multi-head configurations
- Robotic loading and unloading systems
- Conveyor-based production lines
- Vision inspection and auto-eject systems
Hastings can design complete automation systems or integrate the H60 into existing manufacturing environments.
