H Series (Hydraulic)

H Series

Hydraulic Hot Stamping & Heat Transfer Presses

The Hastings H Series consists of full hydraulic presses designed for hot stamping and heat transfer applications requiring maximum tonnage, precise pressure control, and consistent force throughout the entire stroke.

These systems are engineered for large-format applications, rigid materials, and production environments where uniform pressure and repeatability are critical to achieving high-quality results.

Available in Hot Stamping and Heat Transfer Configurations

All H Series presses are available in both:

  • Hot Stamping (RL) – Foil-based marking for durable, high-pressure, and metallic finishes
  • Heat Transfer (HT) – Multicolor image transfer using precision indexing and registration

Important:
Heat transfer machines can also perform hot stamping.
Hot stamping-only machines cannot be used for heat transfer.

This flexibility allows each hydraulic platform to be configured based on application requirements without changing the core machine.

Key Features Across the H Series

Full hydraulic systems for consistent force throughout the stroke

Heavy-duty steel frame construction with four-post design

Large work areas for oversized tooling and parts

Precision linear guidance with maintenance-free bearings

Four-corner die leveling adjustment

Microprocessor-controlled press functions

Touchscreen HMI with programmable recipes

Solid-state digital heat control

Operator safety systems with anti-tie-down and infrared sensing

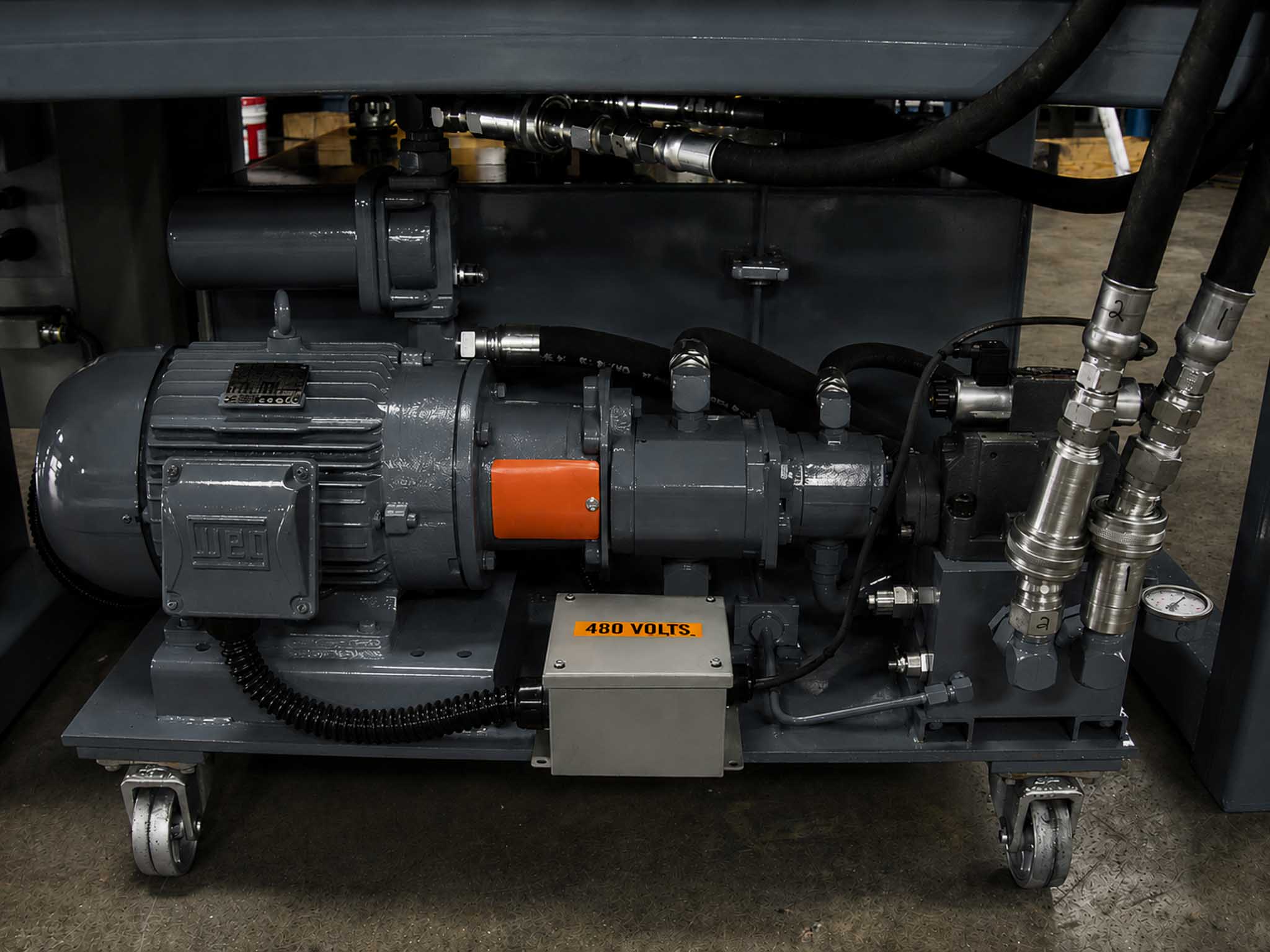

High-flow hydraulic components for efficient cycle performance

Tooling and Automation Integration

Hastings designs and manufactures complete tooling systems and can integrate H Series presses into automated production environments.

Available integration options include:

  • Custom tooling and dies
  • Large-format nesting fixtures
  • Multi-head configurations
  • Robotic loading and unloading systems
  • Conveyor-based production lines
  • Vision inspection systems
  • Auto-eject mechanisms

Designed for Maximum Force Applications

H Series presses are built for production environments where pneumatic and hydra-pneumatic systems are not sufficient.

Typical applications include:

  • Large-format decoration and marking
  • Thick or rigid materials
  • High-pressure transfer requirements
  • Applications requiring uniform pressure across large die surfaces

The hydraulic system ensures consistent pressure across the entire stamping cycle, improving transfer quality and reducing variation.

H Series Models

Select a model below to view detailed specifications and configuration options.

H50

50 Ton Hydraulic Press
Designed for large-format applications requiring high force and consistent pressure across wide stamping areas.
View Model H50

H60

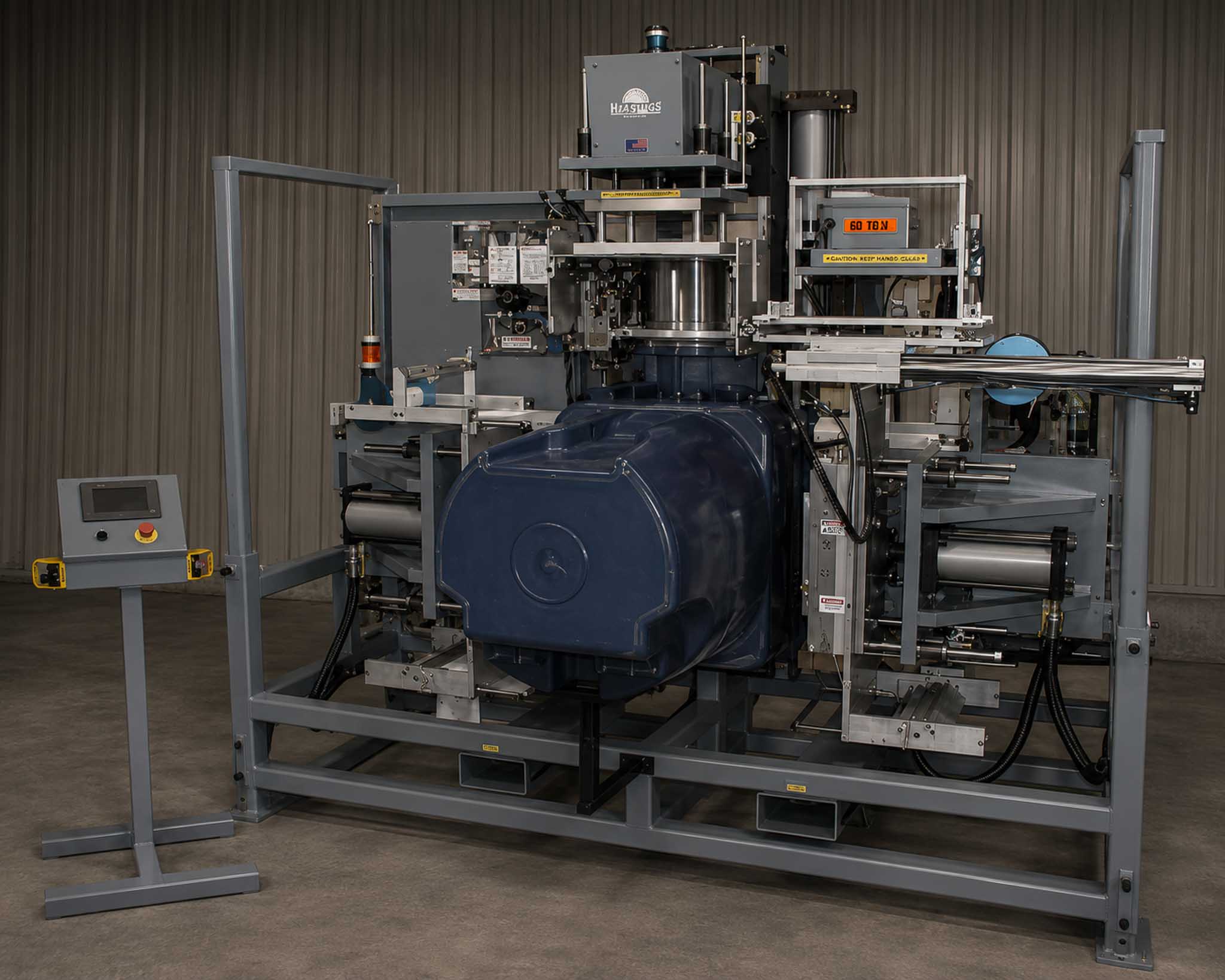

60 Ton Hydraulic Press
Higher-capacity system for heavy-duty applications requiring maximum force and large working areas.
View Model H60

Selecting the Right
Hydraulic Press

Choosing the appropriate H Series model depends on:

  • Required stamping force (tonnage)
  • Imprint size and die surface area
  • Material type and rigidity
  • Production volume and cycle requirements
  • Automation and integration needs

Hastings can assist in evaluating your application and recommending the appropriate system configuration.
