Model HP10
Model HP10
Hydra-Pneumatic Stamping Platform
(10 Ton)

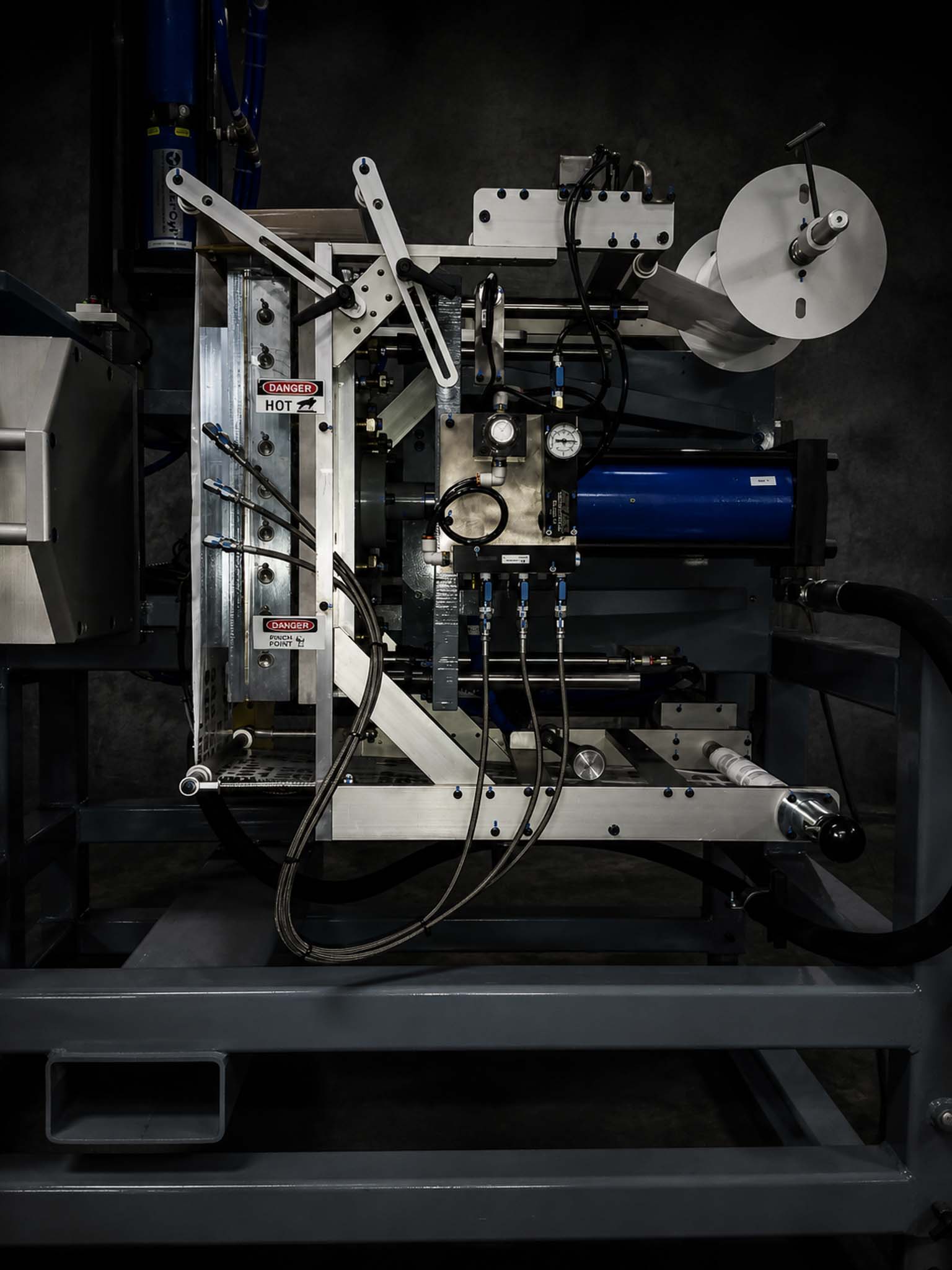

The Model HP10 is a hydra-pneumatic press designed for hot stamping and heat transfer applications requiring higher tonnage and consistent pressure delivery. By combining pneumatic operation with hydraulic force amplification, the HP10 platform delivers increased force while maintaining efficient cycle performance.
This model is well suited for applications involving larger imprint areas, rigid materials, and production environments where consistent pressure and repeatability are critical.

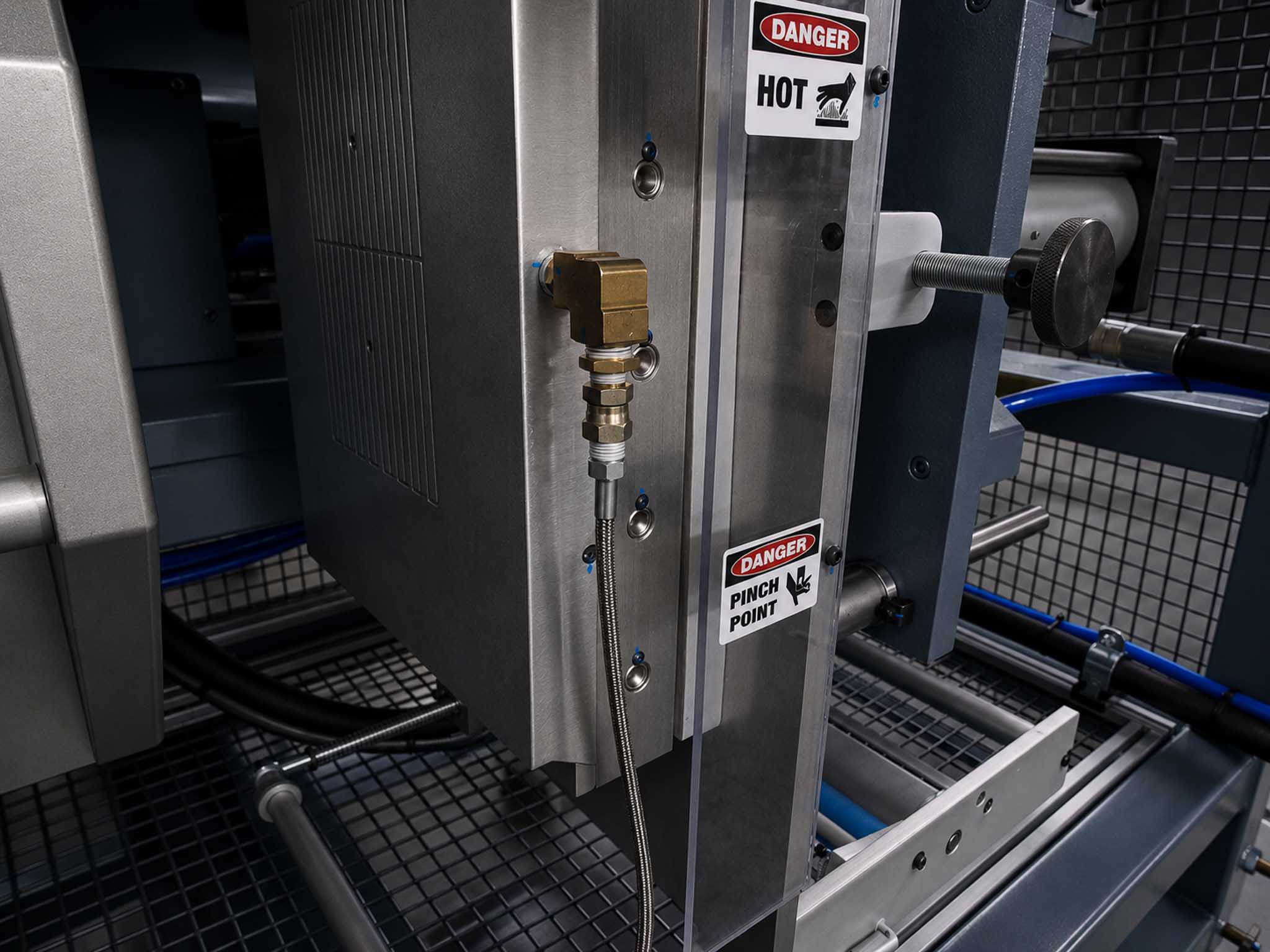

Key Features
Heavy-duty steel frame with large aluminum work table
Adjustable daylight for flexible tooling setup
Hydra-pneumatic system for increased force and controlled pressure application
Hardened linear shafts with maintenance-free composite die set bearings
Dovetail die mounting plate
Four-corner die leveling adjustment
Calibrated anti-pinch stroke adjustment
Microprocessor-controlled press functions
Touchscreen interface with:
- Cycle counter
- Setup mode (jog function)
- Head-up delay
Ten programmable recipes for pressure, temperature, and timing
Solid-state dual digital heat control
Two-hand anti-tie-down safety system with infrared sensing beams
Rugged support frame construction
Standard Specifications
Head Size
12 x 16 in
Optional Head Size
16 x 16 in
Maximum Stamping Pressure
10 Ton
Head Stroke
0–3 in (additional stroke upon request or application)
Throat Depth
10 in
Adjustable Daylight
N/A
Electrical Requirements
480, 3 Phase
Support Guide Rods with Die Set Bearings
4
Frame Design
4 Post or C Frame
Available Configurations and
Process Options
The HP10 platform can be configured for either heat transfer or hot stamping applications depending on production requirements.
Hot Stamping (RL)
- Foil-based decoration process
- Motor-driven, timer-controlled foil advance
- Suitable for single-color, metallic, or durable markings
- Simplified indexing system for consistent foil application
Note: Hot stamping-only machines cannot be used for heat transfer.
Heat Transfer (HT)
- Multicolor image transfer capability
- High-accuracy transfer indexing system
- Photoelectric eye registration for precise placement
- Two-speed indexing control for improved accuracy
- Fine adjustment for transfer alignment
- Suitable for detailed graphics and multi-color applications
Note: Heat transfer machines can also perform hot stamping.
Built for High-Force Production Applications
The HP10 is designed for applications that require substantial stamping force and consistent pressure across larger imprint areas.
Typical use cases include:
- Large-format decoration and marking
- Rigid or thick material applications
- High-force stamping requirements
- Production environments where pneumatic systems are not sufficient
The hydra-pneumatic system provides a balance between pneumatic efficiency and hydraulic-level force, delivering consistent results without the complexity of full hydraulic systems.
Tooling and Automation Integration
The HP10 supports full integration with:
- Custom tooling and dies
- Nesting fixtures and alignment systems
- Rotary index tables and slide tables
- Pick-and-place systems
- Vision inspection and auto-eject systems
Hastings can design complete automation systems or integrate the HP10 into existing production lines, including robotic and conveyor-based systems.
