Model H50

Model H50

Hydraulic Stamping Platform
(50 Ton)

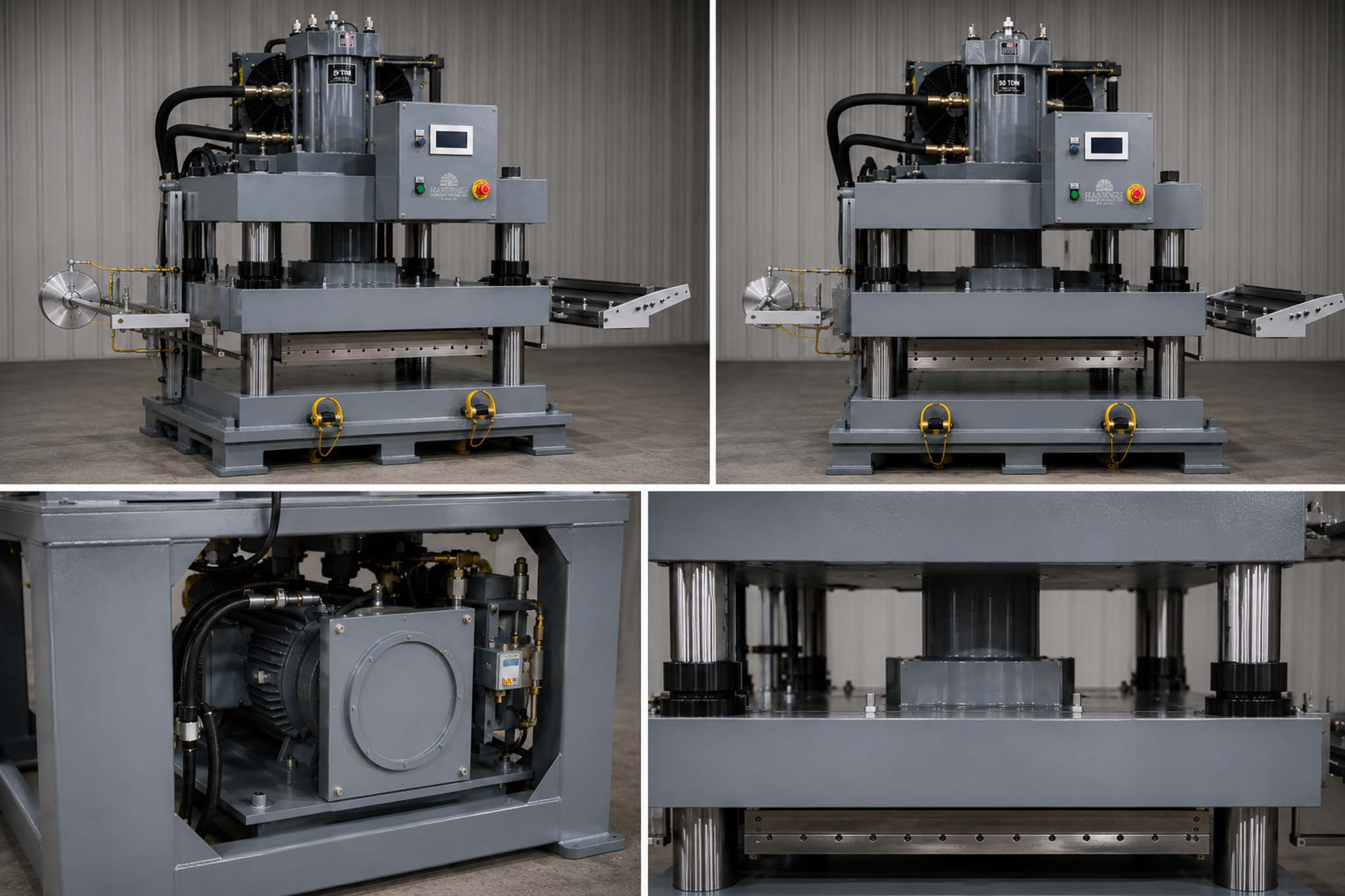

The Model H50 is a hydraulic press designed for hot stamping and heat transfer applications requiring high tonnage and precise pressure control. Utilizing a full hydraulic system, the H50 delivers consistent force throughout the entire stroke, making it well suited for demanding industrial applications.

This platform is designed for large-format stamping, rigid materials, and applications where uniform pressure and repeatability are critical.

Key Features

Heavy-duty steel frame with four-post design for maximum rigidity

Large aluminum work table for secure tooling setup

Hydraulic system for full-force delivery across the entire stroke

Hardened linear shafts with maintenance-free composite die set bearings

Hardened linear shafts with maintenance-free composite die set bearings

Dovetail die mounting plate

Four-corner die leveling adjustment

Calibrated anti-pinch stroke adjustment

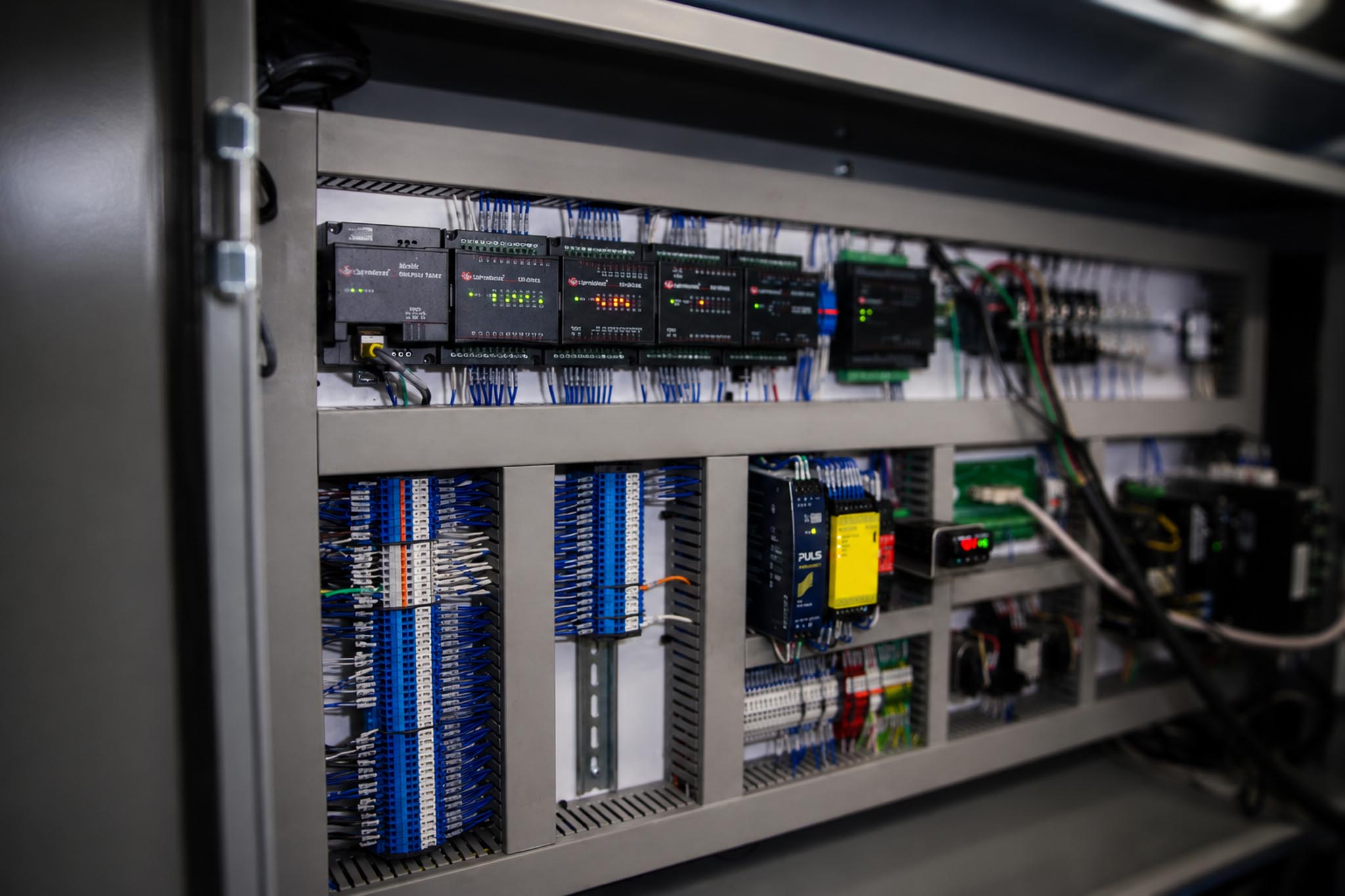

Microprocessor-controlled press functions

Touchscreen interface with:
  • Cycle counter
  • Setup mode (jog function)
  • Head-up delay

Ten programmable recipes for pressure, temperature, and timing

Solid-state dual digital heat control

Two-hand anti-tie-down safety system with infrared sensing beams

High-flow hydraulic system for efficient cycle performance

Rugged structural design for high-tonnage applications

Standard Specifications

Head Size

32 x 32 in

Optional Head Size

40 x 40 in

Maximum Stamping Pressure

50 Ton

Head Stroke

0–4 in (additional stroke upon request or application)

Throat Depth

Clear (4-post design)

Adjustable Daylight

N/A

Electrical Requirements

480, 3 Phase

Support Guide Rods with Die Set Bearings

4

Frame Design

4 (C-frame) / 4-post configuration

Available Configurations and
Process Options

The H50 platform can be configured for either heat transfer or hot stamping applications depending on production requirements.

Hot Stamping (RL)

  • Foil-based decoration process
  • Motor-driven, timer-controlled foil advance
  • Suitable for single-color, metallic, or durable markings
  • Simplified indexing system for consistent foil application

    Note:  Hot stamping-only machines cannot be used for heat transfer.

Heat Transfer (HT)

  • Multicolor image transfer capability
  • High-accuracy transfer indexing system
  • Photoelectric eye registration for precise placement
  • Two-speed indexing control for improved accuracy
  • Fine adjustment for transfer alignment
  • Suitable for detailed graphics and multi-color applications

    Note:  Heat transfer machines can also perform hot stamping.

Built for Maximum Force and Large-Scale Applications

The H50 is designed for applications that require high tonnage and uniform pressure across large surface areas.

Typical use cases include:

  • Large-format decoration and marking
  • Thick, rigid, or structural materials
  • Applications requiring full-force contact across wide dies
  • Heavy industrial production environments

The full hydraulic system provides consistent pressure throughout the stroke, ensuring uniform transfer quality across the entire imprint area.

Tooling and Automation Integration

The H50 supports integration with:

  • Custom tooling and dies
  • Large-format nesting fixtures
  • Multi-head configurations
  • Robotic loading and unloading systems
  • Conveyor-based production lines
  • Vision inspection and auto-eject systems

Hastings can design complete automation systems or integrate the H50 into existing manufacturing environments.
